CleanMop Systems
Technical Data Sheet
USM / TDS
Reusable cleanroom mop
UltraSpeed Microfiber Mop
Reusable Cleanroom Mop for ISO 7–8 / GMP C–D Areas
The UltraSpeed Microfiber Mop is a reusable cleaning mop designed for controlled environments and cleanroom applications. Its microfiber construction and structured cleaning surface support effective removal of contamination while maintaining low particle release characteristics. Color-coded red, yellow, blue and green identification tabs support cleaning-zone segregation and help reduce the risk of cross-contamination.
01
Key features
- Microfiber cleaning construction
- Structured cleaning surface
- Low particle shedding
- Suitable for ISO Class 7–8 environments
- Suitable for GMP Grade C/D areas
- High liquid absorption
- Cleaning coverage up to 20 m² per wetting
- Color-coded zone identification
- At least 200 professional cleanroom laundry wash cycles
- Particle release report available
02
Technical specifications
| Parameter | Specification |
|---|---|
| Product Type | Reusable Microfiber Mop / Replacement Mop Head |
| Material | Microfiber |
| Exact Fiber Composition | TBC |
| Nominal Size | 40 cm |
| Detailed Dimensions | TBC |
| Weight | TBC |
| Recommended Cleanroom Classification | ISO Class 7–8 |
| GMP Area | Grade C / D |
| Particle Shedding | Low particle release |
| Particle Release Report | Available |
| Cleaning Coverage | Up to 20 m² per mop after one wetting |
| Absorption Performance | High liquid absorption |
| Quantitative Absorption Capacity | TBC |
| Color Coding | Red / Yellow / Blue / Green |
| Reusable | Yes |
| Laundry Life | ≥200 professional cleanroom laundry wash cycles |
| Recommended Laundry Conditions | TBC |
| Autoclave Compatibility | TBC |
| Sterility | TBC |
03
Applications
- ISO Class 7 cleanrooms
- ISO Class 8 cleanrooms
- GMP Grade C areas
- GMP Grade D areas
- Controlled production environments
- Low-particle cleaning applications
04
Performance summary
- Particle Release
- Low particle shedding performance. Particle release report available.
- Coverage
- Up to 20 m² per mop head after one wetting.
- Reusability
- Designed for at least 200 professional cleanroom laundry wash cycles.
- Color Control
- Four-color identification tabs support cleaning-area segregation.
05
Ordering information
| MIDPOSI Part No. | Product Description | Size | Packing | Application |
|---|---|---|---|---|
| MP-USM-01 | UltraSpeed Supreme Microfiber Mop Replacement Head | 40 cm | 20 pcs/carton | GMP C/D |
| MP-USM-02 | UltraSpeed Standard Microfiber Mop Replacement Head | 40 cm | 20 pcs/carton | GMP C/D |
| MP-USM-03 | UltraSpeed Microfiber Three-Color Mop Replacement Head | 40 cm | 20 pcs/carton | GMP C/D |
06
Documentation
- Particle release report
07
Technical note
Technical information is based on currently available product documentation. Specifications marked TBC require confirmation before final commercial or validation use.
08

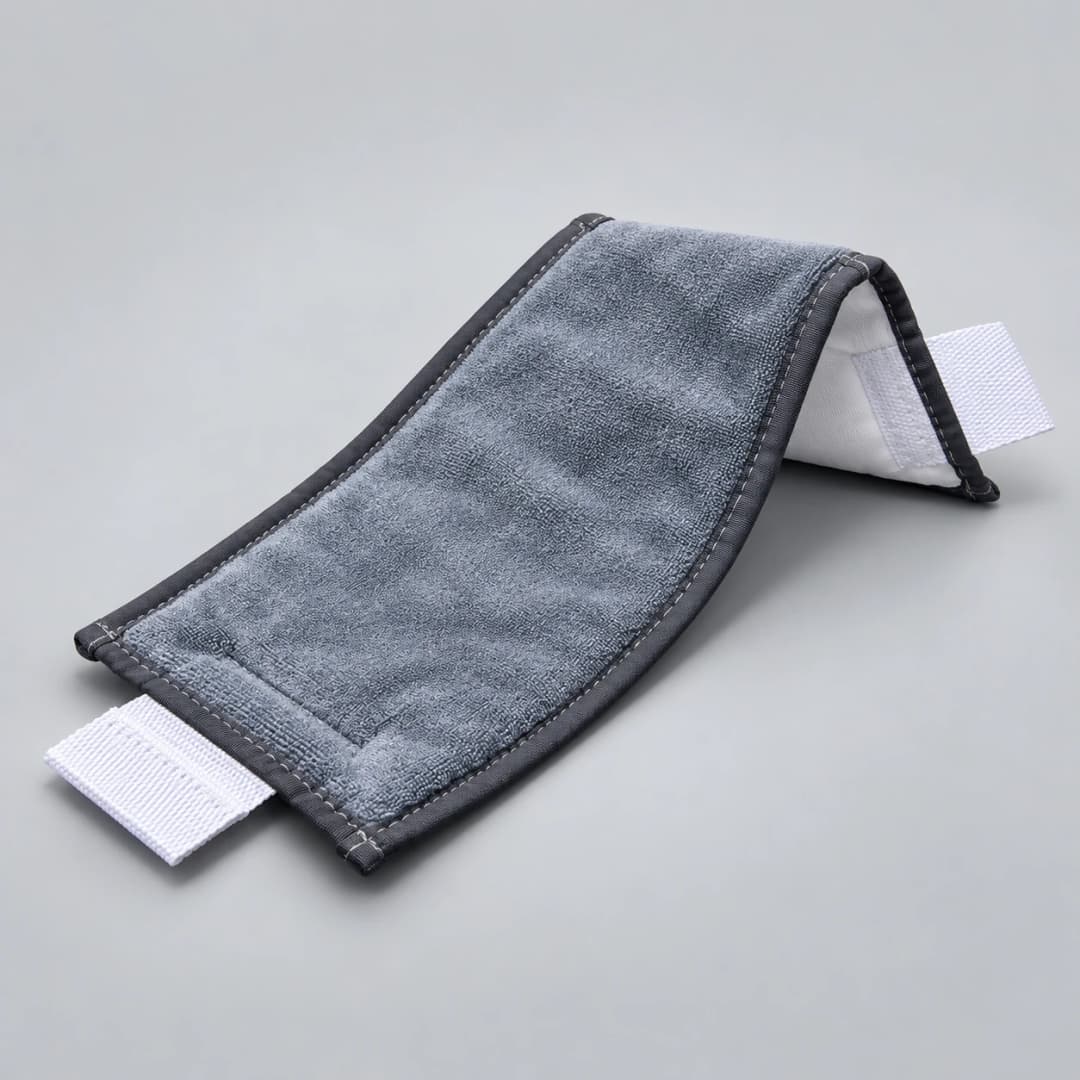

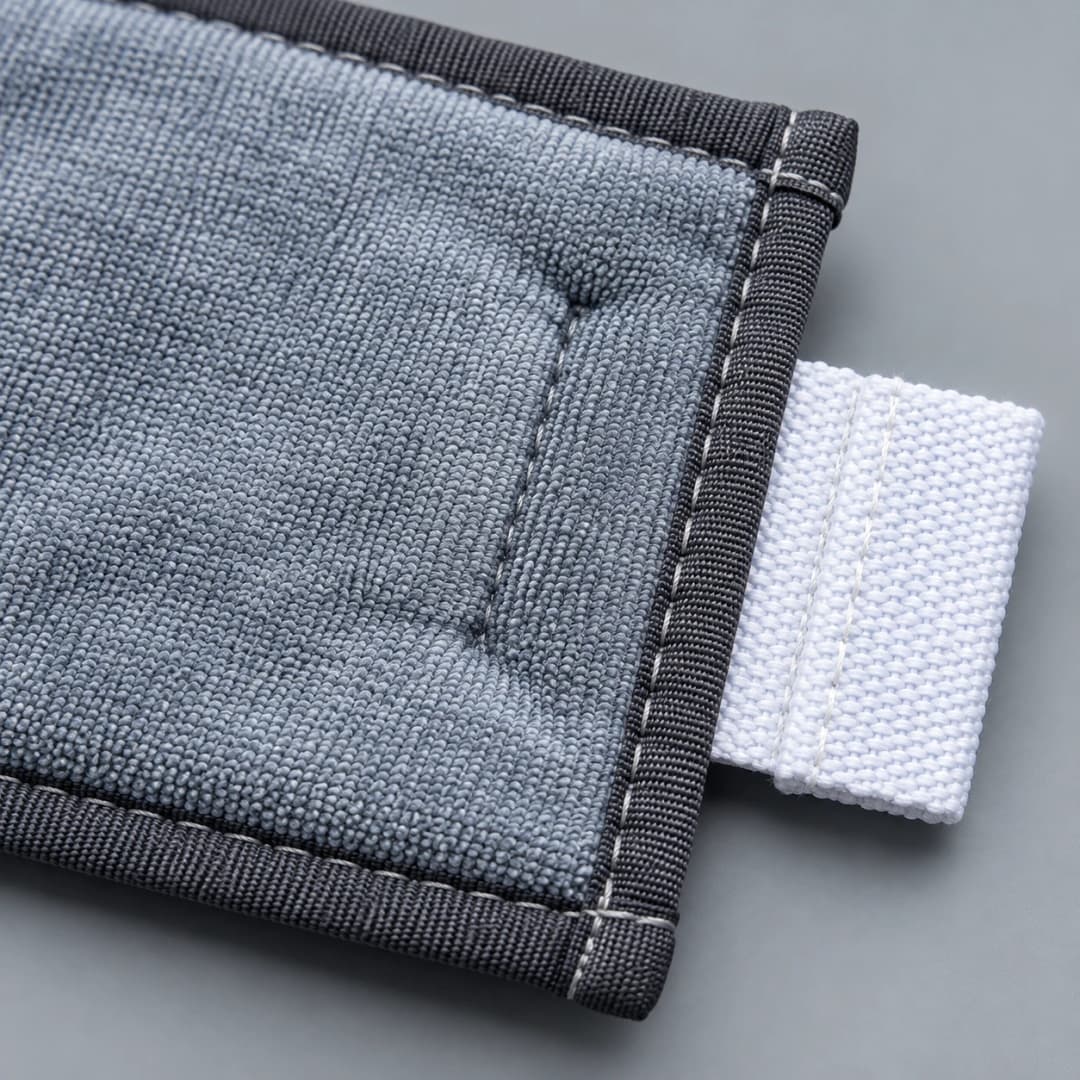

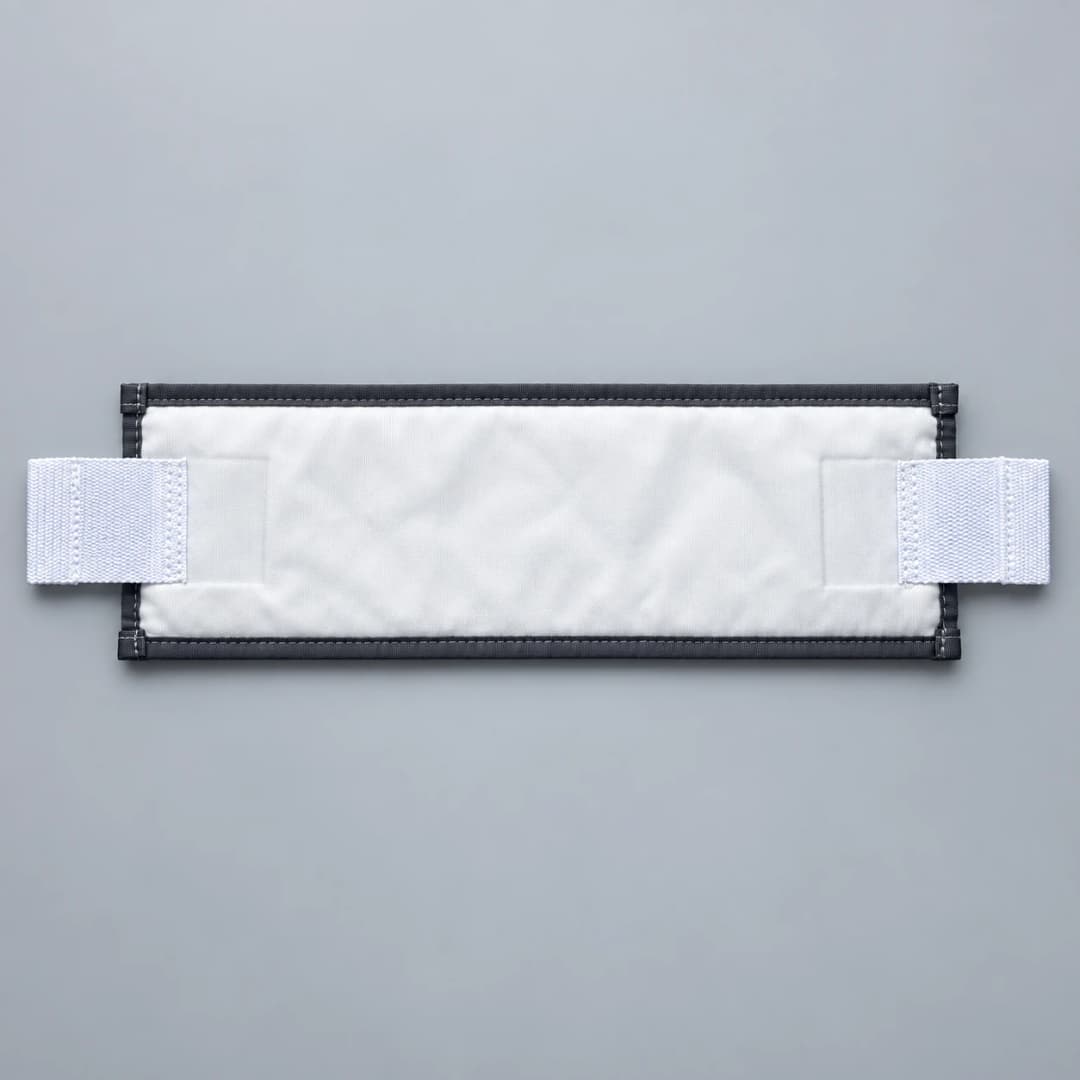

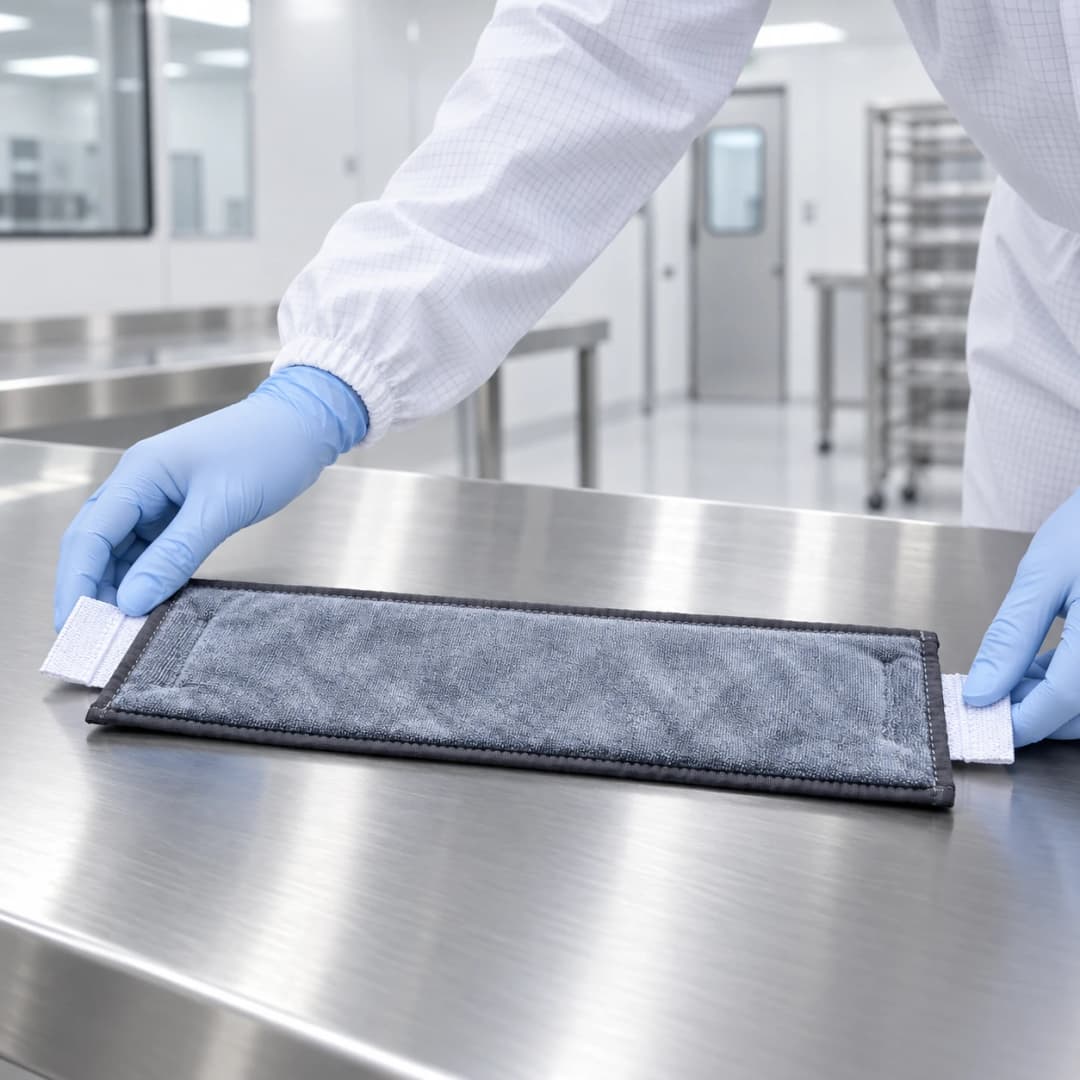

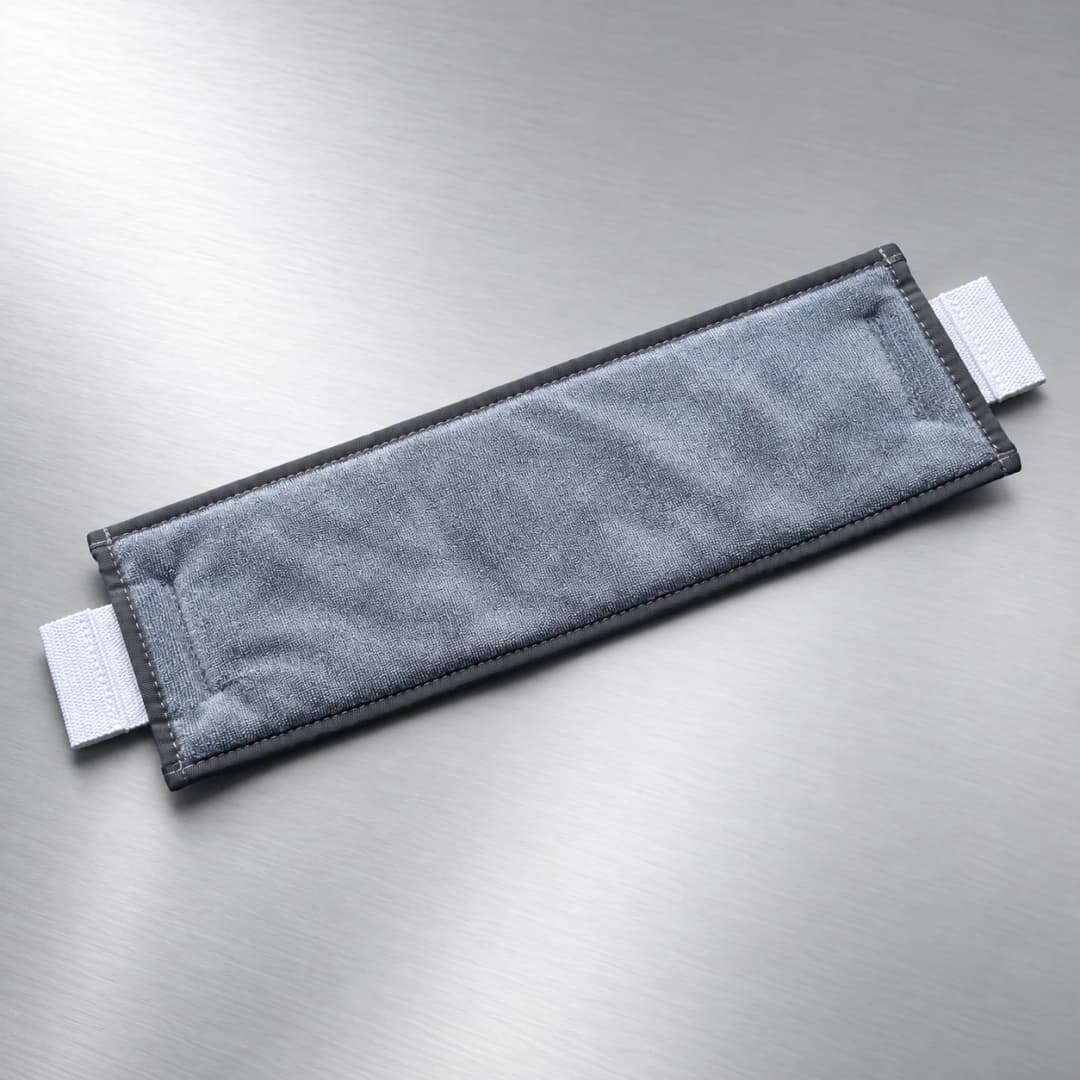

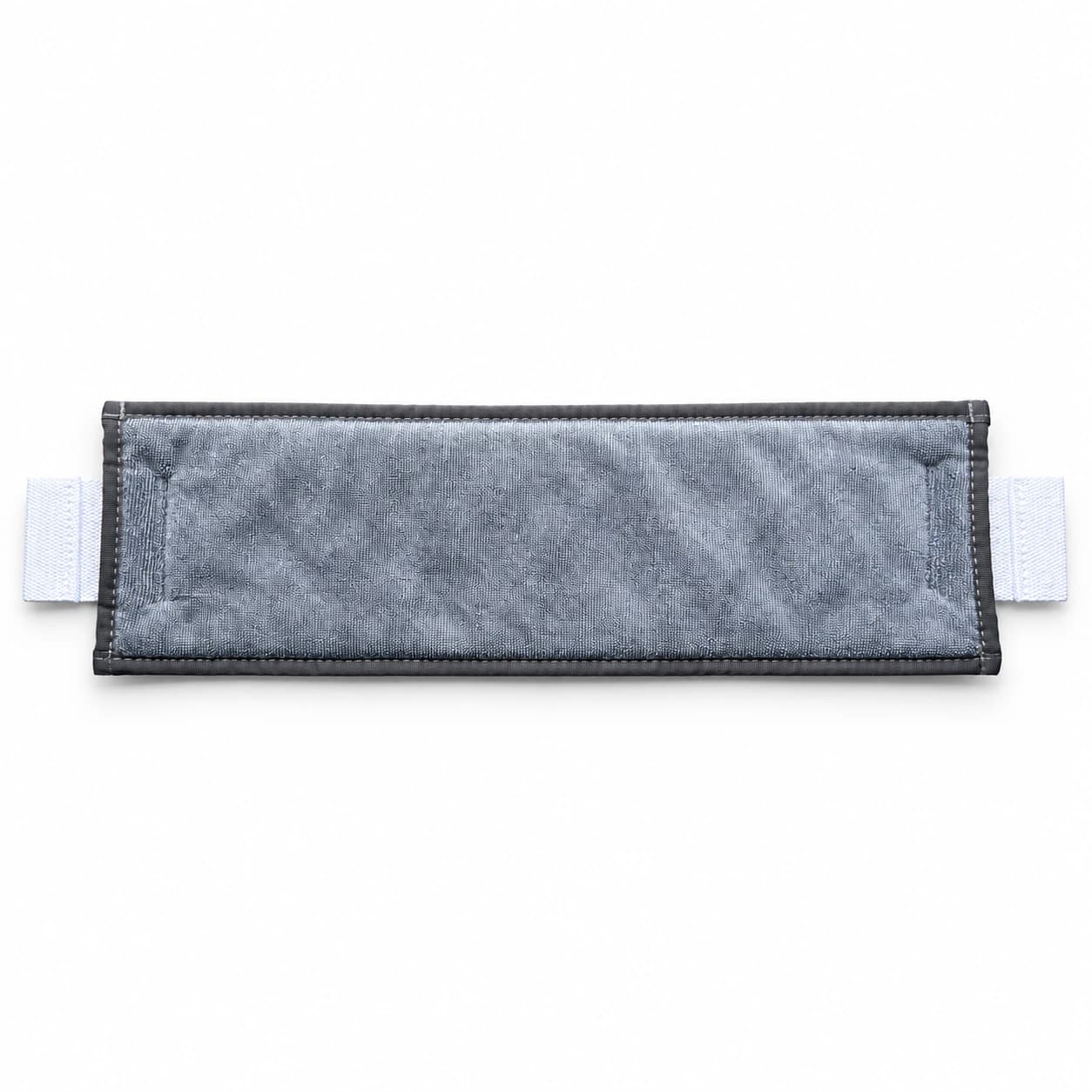

Product image record
