Technical guide
Cleanroom Mop Frame Compatibility Review
A practical review path for existing mop frames: submit dimensions, attachment details, photos or drawings before requesting a sample evaluation.
Send your frame dimensions, attachment type, photo or drawing for compatibility review.
Check Your Existing Mop FrameBy Jing Jiang · Published · Updated
Direct answer
Use the existing-frame review path when the mop head, frame or attachment interface is already part of your cleaning workflow. Share the dimensions and current reference available to you; compatibility is reviewed for the submitted configuration and is not assumed from a product family or size alone.
Technical review
What to send for a useful first review

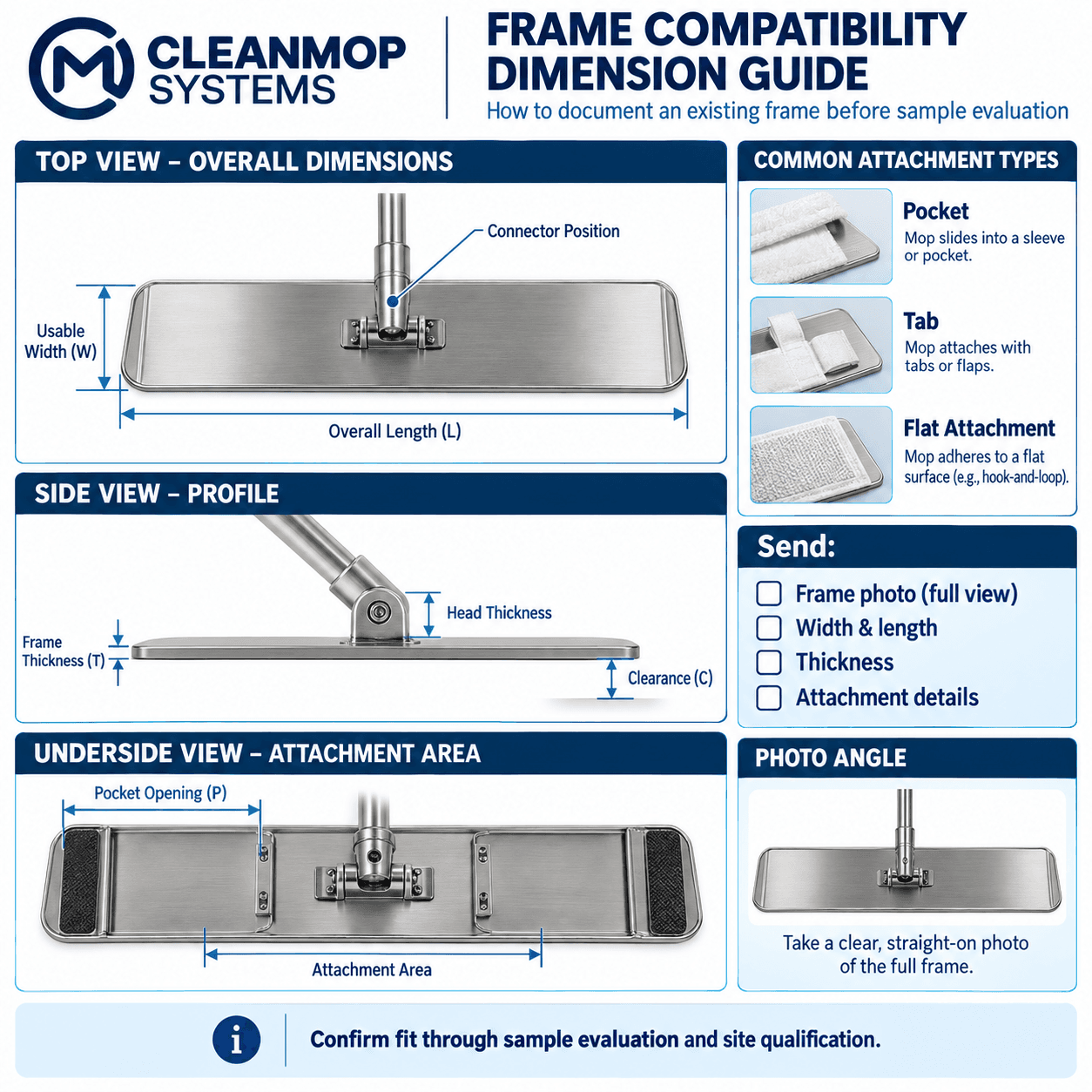

The most useful starting information is the usable frame width, frame length where relevant, attachment style and the current mop or frame reference. A clear photo of the top and underside, a drawing or a specification sheet can help identify the interface, but a photo does not replace a dimensional or sample review.
- Usable frame width
- Frame length if useful to the route
- Pocket, flap, hook-and-loop, clip or other attachment style
- Current mop or frame reference
- Photo, drawing or specification
Technical review
What the review can address
CleanMop Systems can review the submitted information for dimensional fit questions, attachment method, likely product candidates and whether a sample evaluation is the appropriate next step. The review remains tied to the information provided and the exact mop configuration under consideration.
If a dimension or interface detail is missing, keep the question open rather than treating a similar-looking product or nominal size as proof of compatibility.
- Dimensional fit questions
- Attachment method
- Likely product candidates
- Need for a representative sample
- Open information or qualification items
Technical review
Submit for compatibility review
Use the existing compatibility sample flow to provide your frame width, attachment type, application, sterile requirement and current mop or frame context. Measurements and technical selections can remain unknown at the first step.
The outcome is a technical review and, where appropriate, a recommended sample evaluation. It is not an instant match or a guaranteed compatibility result.
Evidence library
Confirmed data and open questions
The table below is limited to MIDPOSI Polyester Knit Mop records in the evidence library. It is SKU-scoped and reviewed against the MIDPOSI Polyester Knit Mop Variant Specifications record dated 2026-08-31. It is not a universal claim for other mop families.
Swipe or scroll horizontally to compare all SKU columns.
| Field | MID-MOP-PK-40G-N | MID-MOP-PK-40G-S | MID-MOP-PK-55G-N | MID-MOP-PK-55G-S | MID-MOP-PK-65G-N | MID-MOP-PK-65G-S |
|---|---|---|---|---|---|---|
| SKU | MID-MOP-PK-40G-N | MID-MOP-PK-40G-S | MID-MOP-PK-55G-N | MID-MOP-PK-55G-S | MID-MOP-PK-65G-N | MID-MOP-PK-65G-S |
| Sterile status | Non-Sterile | Sterile | Non-Sterile | Sterile | Non-Sterile | Sterile |
| Nominal size | 40 cm × 12 cm | 40 cm × 12 cm | 40 cm × 12 cm | 40 cm × 12 cm | 40 cm × 12 cm | 40 cm × 12 cm |
| Nominal weight | 40 g (±10%) | 40 g (±10%) | 55 g (±10%) | 55 g (±10%) | 65 g (±10%) | 65 g (±10%) |
| Construction | 4-layer, 100% polyester knit | 4-layer, 100% polyester knit | 5-layer, 100% polyester knit | 5-layer, 100% polyester knit | 5-layer polyester construction | 5-layer, 100% polyester knit |
| Packaging / sterilization | Needs further confirmation | Double-layer vacuum sealed; gamma irradiated; carton quantity: 100 | Needs further confirmation | Double-layer vacuum sealed; gamma irradiated; carton quantity: 100 | Needs further confirmation | Double-layer vacuum sealed; gamma irradiated; carton quantity: 100 |
Confirmed data
SKU identity, sterile status, nominal size, nominal weight and construction are confirmed for the six listed records. Sterile rows also carry the recorded double-layer vacuum-sealed and gamma-irradiated packaging statement.
Needs further confirmation
- • Frame interface / compatibility
- • Application and Grade A/B/C/D suitability
- • Absorbency and surface coverage
- • Particle and lint performance
- • MOQ, lead time and customization
- • Storage, expiry and reusable lifecycle data
Compatibility
Continue this technical review
Buyer decision factors
What to review
- 01
Usable frame width and length
- 02
Attachment method and geometry
- 03
Current mop or frame reference
- 04
Photos, drawings and open dimensions
- 05
Representative sample evaluation
Reference framework
Official standards and guidance
- ISO 14644-1:2015 — Classification of air cleanliness by particle concentration ↗
- EU GMP Annex 1 — Manufacture of Sterile Medicinal Products ↗
- IEST-RP-CC018 — Cleanroom Cleaning and Sanitization ↗
These sources provide the evaluation framework. Final suitability remains subject to the buyer’s SOP, risk assessment, qualification and validation process.
